Base SP3.
Fixed RF detection with navigation spoofing.
Overview
Base SP3
- Integrated S + P configuration
- Wideband RF sensing
- Fixed-site installation

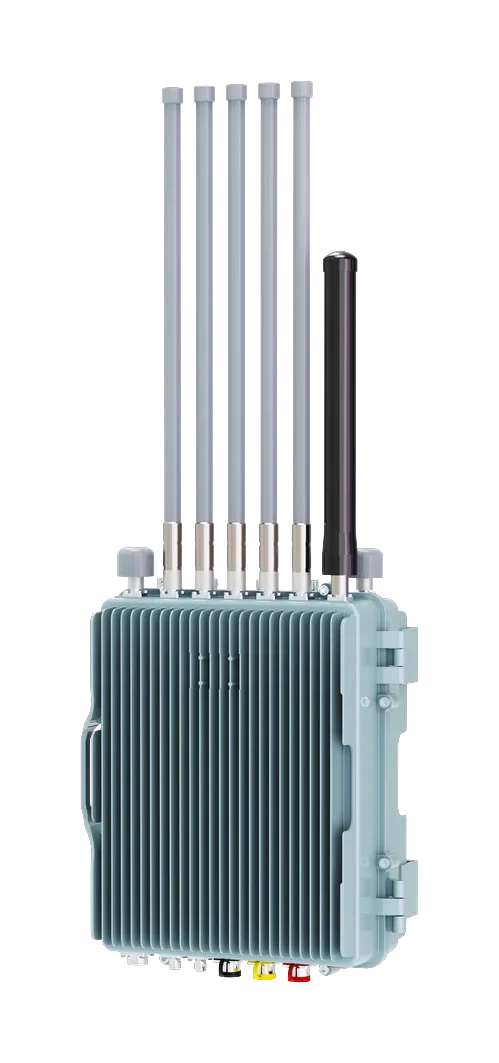

Base SP3 combines a full-band RF detection function with GNSS spoofing in a fixed system. It provides a distinct option within the Base family where the required countermeasure capability is navigation-based and a separate jamming function is not part of the listed configuration.
Specifications
Technical data.
- Detection coverage
- 30 MHz–6 GHz
- Detection range
- Up to 8 km, depending on environment and target
- Direction-finding accuracy
- 3° RMS
- Spoofing range
- Up to 1 km, customisable
- GNSS signals
- GPS L1, GLONASS L1, BDS B1; Galileo E1 and GPS L2 optional
- Environment / protection
- −40°C to +70°C; IP66
- System role
- Integrated RF detector and GNSS spoofing node
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
