Base X.
The complete fixed Skyner capability set.
Overview
Base X
- Complete RF capability set
- Integrated navigation countermeasure
- Scalable fixed architecture

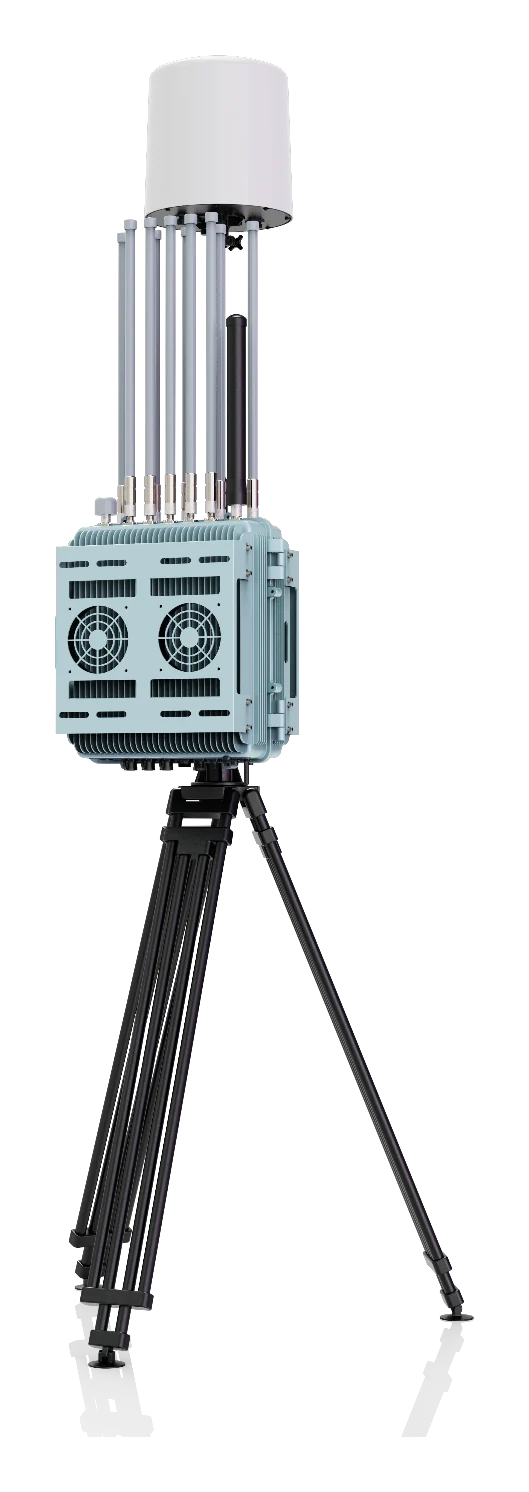

Base X combines scanning, direction finding, jamming and GNSS spoofing in one fixed node. It is the most complete RF-based configuration in the Base family, with protocol identification and a networked system architecture that can be complemented by radar and optical sensors.
Specifications
Technical data.
- Detection coverage
- 30 MHz–6 GHz
- Jamming bands
- 900 MHz; 1.5 / 2.4 / 5.2 / 5.8 GHz
- GNSS signals / range
- GPS L1, GLONASS L1, BDS B1; up to 1 km
- Power supply / consumption
- AC 110–240 V; ≤140 W detection; ≤1,000 W full-band jamming
- Main unit dimensions
- 489 × 461 × 312 mm, excluding antennas
- Weight / protection
- ≤37 kg; IP66
- Networking
- Multi-unit positioning and compatible sensor integration
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
