Vehicle SJP.
An integrated system for mobile platforms.
Overview
Vehicle SJP
- Vehicle-mounted architecture
- Integrated sensing and response
- Relocatable monitoring
Vehicle SJP brings RF detection, jamming and GNSS spoofing to a vehicle-mounted platform. The configuration supports projects where the system needs to relocate with the team, with vehicle integration and the operator station defined as part of the delivered solution.

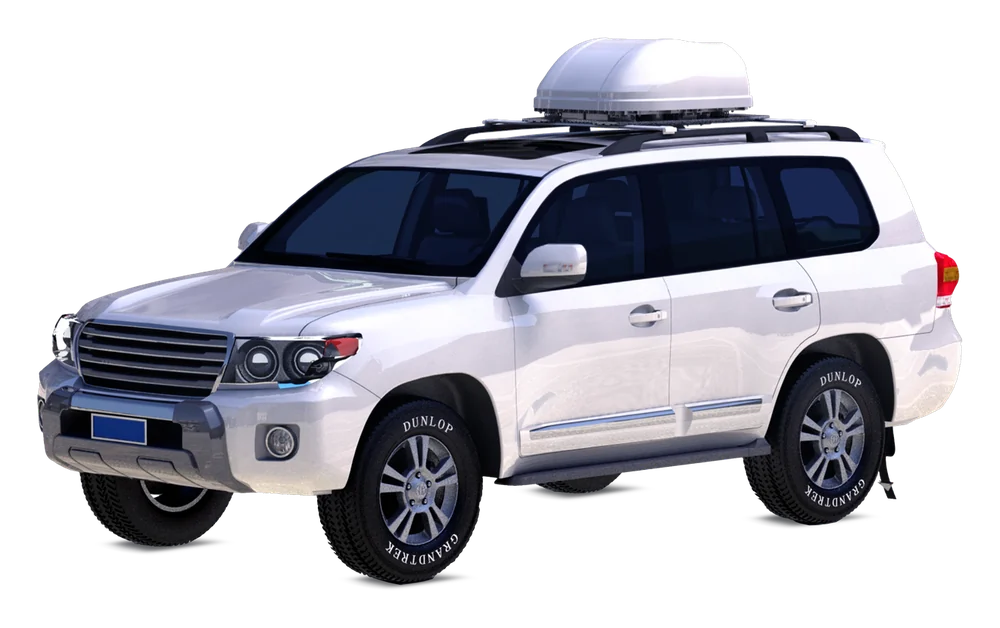

The vehicle shown is for illustration only and is not included. Vehicle integration and fitting are quoted separately.
Specifications
Technical data.
- Detection coverage
- 30 MHz–6 GHz
- Direction-finding accuracy
- 3° RMS hovering / 10° moving
- Jamming bands
- 400 / 900 MHz; 1.2 / 1.4 / 1.5 / 2.4 / 5.2 / 5.8 GHz, customisable
- GNSS signals
- GPS L1, GLONASS L1 and BDS B1
- Dynamic detection
- Operates at vehicle speeds up to 80 km/h
- Power supply
- Vehicle supply or AC 110–240 V; ≤150 W detection, ≤1,400 W full-band jamming
- Dimensions / weight
- 985 × 795 × 434 mm; approx. 60 kg
- Environmental protection
- IP66
- Mechanical integration
- Vehicle interface, power and mounting defined per project
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
