Raptor X.
The complete handheld Skyner capability set.
Overview
Raptor X
- S + D + J + P
- Map-based target view
- Hot-swappable dual batteries

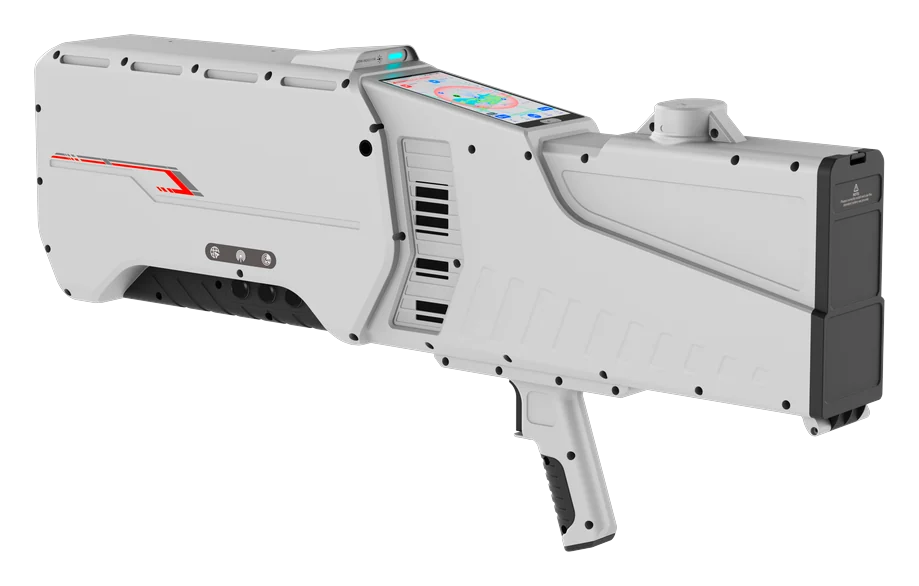

Raptor X brings RF scanning, direction finding, jamming and GNSS spoofing together in one handheld system. A bright 5.5-inch touchscreen provides map-based target information, while the dual-battery design supports battery changes without interrupting the monitoring session.
Specifications
Technical data.
- Detection coverage
- 400 MHz–6 GHz, documented configuration
- Direction finding
- ≤10° RMS
- Jamming bands
- 433 MHz / 1.4 GHz options; 900 MHz; 1.2 / 1.5 / 2.4 / 5.2 / 5.8 GHz
- GNSS signals / range
- GPS L1, GLONASS L1, BDS B1; up to 1 km
- Display / power
- 5.5-inch touchscreen; two replaceable batteries; AC supply
- Runtime
- ≥3 h monitoring; up to 1 h partial-band or 20 min full-band jamming
- Operating temperature
- −20°C to +45°C
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
