Overview
Base S2
- Fixed-site scanning
- Simple portfolio entry point
- Expandable system design

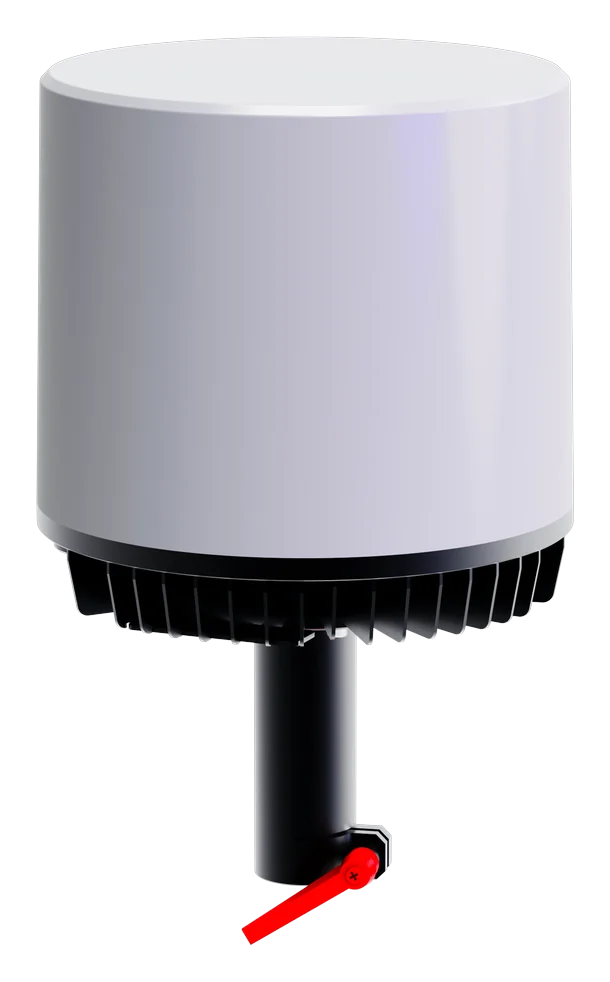

Base S2 is the compact fixed RF detection node in the Skyner range. A single unit detects and identifies drones passively; several units networked together position them by time difference of arrival (TDOA) and track their trajectories. It is the cost-conscious starting point for a fixed network, while single-node direction finding is addressed by the SD models.
Specifications
Technical data.
- Primary function
- Fixed passive RF detection with networked TDOA positioning
- Detection coverage
- 30 MHz–6 GHz
- Range
- Up to 3 km
- Identification
- Protocol-based identification with electronic fingerprint
- Positioning
- Networked TDOA positioning, ≤10 m RMS; multi-node trajectory tracking
- Simultaneous targets
- More than 30 drones
- Power supply
- AC 110–240 V; ≈60 W
- Dimensions / weight
- Ø224 × 288 mm; 3 kg
- Environment / protection
- −40°C to +70°C; IP66
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
