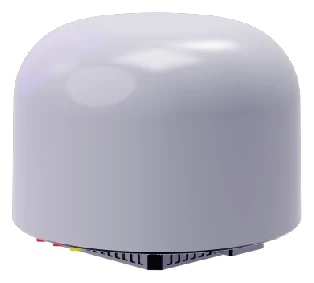

Dome SD.
Wideband direction finding in an integrated dome.
Overview
Dome SD
- Integrated antenna array
- Multi-target information
- Fixed or adapted mobile installation
Dome SD integrates multi-array direction-finding antennas and RF analysis in a compact dome-style node. It combines broad RF coverage with bearing information and supported protocol decoding, making it suitable for fixed monitoring points and adaptable installations.
Specifications
Technical data.
- Detection coverage
- 30 MHz–6 GHz
- Direction-finding coverage
- 400 MHz–6 GHz
- Direction-finding distance
- 3–5 km, target and environment dependent
- Main monitored bands
- 400 / 800 / 900 MHz; 1.2 / 1.4 / 2.4 / 5.2 / 5.8 GHz
- Additional monitoring
- RID decoding and ADS-B monitoring listed
- Connectivity
- GPS and Wi-Fi
- Operating temperature
- −40°C to +65°C
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
