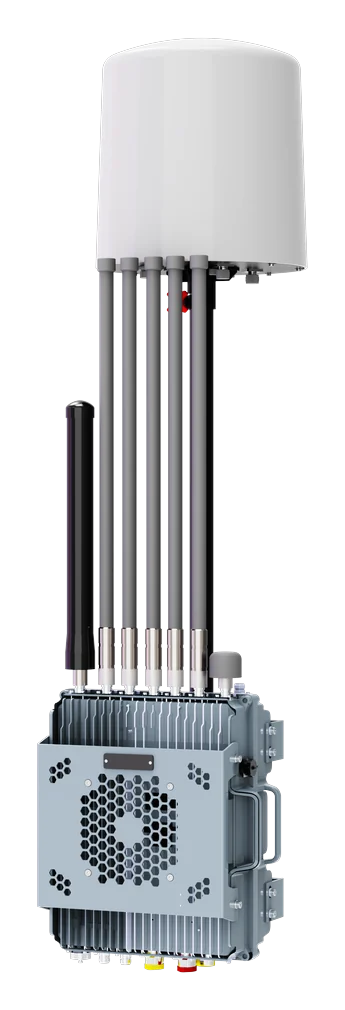

Base SD10.
Long-range RF awareness for larger sites.
Overview
Base SD10
- Extended observation range
- Wideband reception
- Fixed network expansion
Base SD10 extends the fixed scanning and direction-finding family to a detection range of up to 8 km with direction finding to 5 km. It is a candidate for projects where a larger observation area is needed, with actual coverage determined by the radio environment, terrain and target signals.
Specifications
Technical data.
- Primary functions
- RF scanning and direction finding
- Detection coverage
- 100 MHz–8 GHz
- Main bands
- 433 / 900 MHz; 1.2 / 1.4 / 2.4 / 5.2 / 5.8 GHz
- Direction-finding band
- 100 MHz–6 GHz
- Simultaneous targets
- At least 35 drones
- Positioning
- CRPC 2.0, Drone ID and RID decoding; AOA / TDOA networked positioning
- Power supply
- AC 110–240 V; ≤300 W
- Assembly
- Antenna unit Ø550 × 500 mm (20 kg) and processing enclosure 500 × 450 × 240 mm (40 kg)
- Environment / protection
- −40°C to +65°C; IP65
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
