Vision T2.
Day and night optical tracking for radar and RF integration.
Overview
Vision T2
- Visual target confirmation
- Day/night capability
- Three cameras on one pan-tilt unit

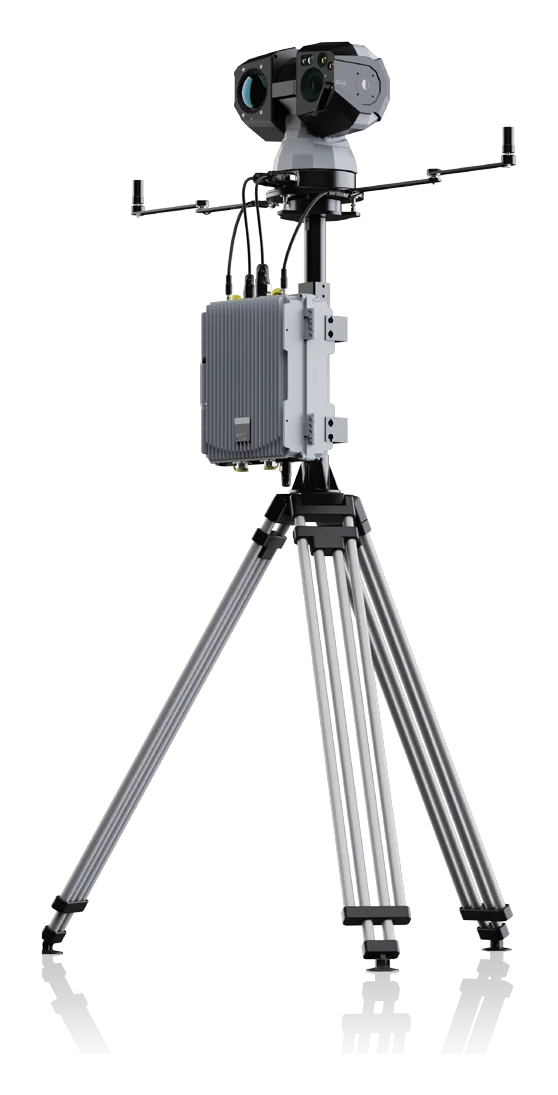

Vision T2 is an electro-optical tracker that works under radar or RF cueing: it identifies and tracks a drone with a long-range visible camera, a wide-angle camera and a thermal channel, day and night. It gives an operator visual confirmation of what the RF sensors report.
Specifications
Technical data.
- Sensor category
- Day/night electro-optical identification and tracking
- Integration
- Cued by radar and RF sensing systems
- Identification range
- Day ≥2 km / night ≥1 km, DJI Mavic 3 reference; medium UAV day ≥4 km / night ≥3 km
- Tracking range
- Day ≥3 km / night ≥2 km, DJI Mavic 3 reference
- Visible camera
- 2688 × 1520; 6.1–561 mm continuous zoom
- Wide-angle camera
- 3840 × 2160; 5–50 mm
- Thermal channel
- VOx uncooled, 640 × 512; 15–100 mm
- Pan / tilt
- 360° / −90° to +90°
- Power supply
- AC 110–240 V; ≤300 W operating
- Dimensions / weight
- 1260 × 328 × 1006 mm (camera unit 335 × 221 × 339 mm); PTZ unit ≤13 kg, computing unit ≤12 kg
- Environment / protection
- −30°C to +65°C; IP66
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
