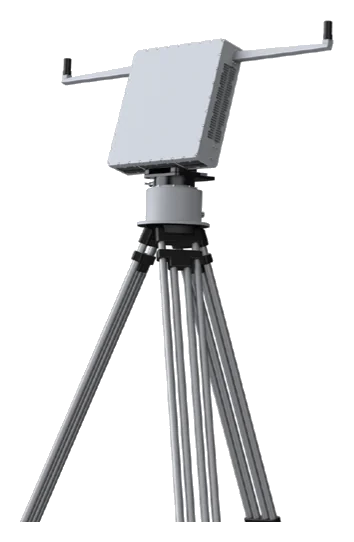

Radar R5.
Active radar for low-altitude surveillance.
Overview
Radar R5
- Active target sensing
- Position and motion data
- RF-independent detection layer
Radar R5 adds an active surveillance layer to the Skyner system. Its one-dimensional active phased array uses electronic elevation scanning and a mechanically rotating azimuth platform. It measures target position and motion without relying on decoding a drone’s radio protocol.
Radar performance depends on target RCS, the operating environment and installation geometry.
Specifications
Technical data.
- Band / array
- Ku-band; one-dimensional active phased array
- Elevation / near range
- 30° elevation coverage; minimum detection range ≤150 m
- Target speed
- 1–50 m/s
- Measurement accuracy
- Range ≤10 m; azimuth 0.3°; elevation 0.6°
- Data output
- Position, speed, echo strength, RCS, target type and tracks; UDP
- Power / weight
- Average consumption <200 W; ≤30 kg
- System capabilities
- Multi-target detection and radar networking
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
