Countermeasure nodes · P
Base P3.
Spoof

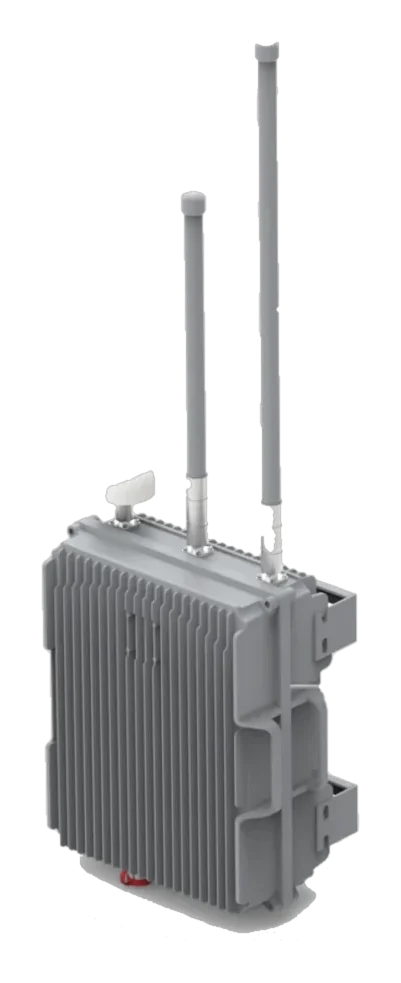

A dedicated GNSS spoofing node.
3 kmcustomisable maximum, unobstructed
360°coverage, specified configuration
IP66outdoor protection
Overview
Base P3
- Dedicated navigation capability
- Optional GNSS bands
- Independent system component
Base P3 provides a standalone navigation spoofing capability for integration with a wider Skyner system. It supports a defined set of satellite-navigation signals, with additional constellations or bands available as configuration options.
Specifications
Technical data.
- Standard GNSS signals
- GPS L1, GLONASS L1 and BDS B1
- Optional signals
- Galileo E1 and GPS L2
- Spoofing range
- Up to 3 km, customisable; unobstructed reference conditions
- Simultaneous targets / response
- At least 10 drones / <10 s
- Power / network
- AC 110–240 V; Ethernet interface
- Dimensions / weight
- 470 × 410 × 240 mm; ≤20 kg
- Environment / protection
- −40°C to +70°C; IP66
Listed values follow the documented configuration. Detection, countermeasure ranges and identification depend on the target, its signals and operating conditions. Countermeasure functions are supplied for authorised users in line with applicable regulations.
